Windows 10: Windows 11 install on Samsung 990 Evo Plus 2 TB

Having a problem installing Windows 11 23H2 or 24H2 on the following systems:Asrock Deskmini 600x latest 4.03 biosAmd ryzen 5 8600GSamsung 990 Evo Plus 2TBThe windows 11 ISO does not see the nvme drive and is asking for a storage driver. Linux installs just fine.How can I get windows 11 installed?

:)



Win10 clean install on Samsung SSD 850 EVO

BLUF: SSD is not listed ubder "Where do you want to install Windows?"

Steps Complete:

1. I've create a Win10 bootable install usb.

2. I connect the new Samsung SSD 850 EVO via SATA.

3. I reboot PC and verify SSD is seen by the motherboard/BIOS

4. Begin Win10 install via usb.

5. Get to "Where do you want to install Windows?" and the SSD is not listed

Problems:

1. Samsung does not offer a driver for the 850 on their website

2. Cannot locate driver elsewhere

Unsuccessful Mitigations Steps Attempt:

A. Format & partition SSD via Windows Disk Management, then retried steps 1-5 above....same result

B. Clone existing HHD onto SSD via "Image for Windows" by TeraByte, then verified SSD contents via Windows Explorer....similar result

Can you please offer some advice on locating a driver for a Samsung SSD 850 EVO 1TB drive? Or an alternative method?

Thank you



Windows 10 install doesn't create a proper EFI partition when installing on Samsung 970 evo nvme SSD

You need to have Secure Boot enabled and confirm you are booting the install media as UEFI. It is essential for the install media to be accessible prior to booting or rebooting.

I am currently running a Samsung 970 EVO Plus 2 TB version and it installed fine.



Clone Boot disk ( Samsung SSD 850 EVO 250 GB) to Samsung 970 EVO PLUS

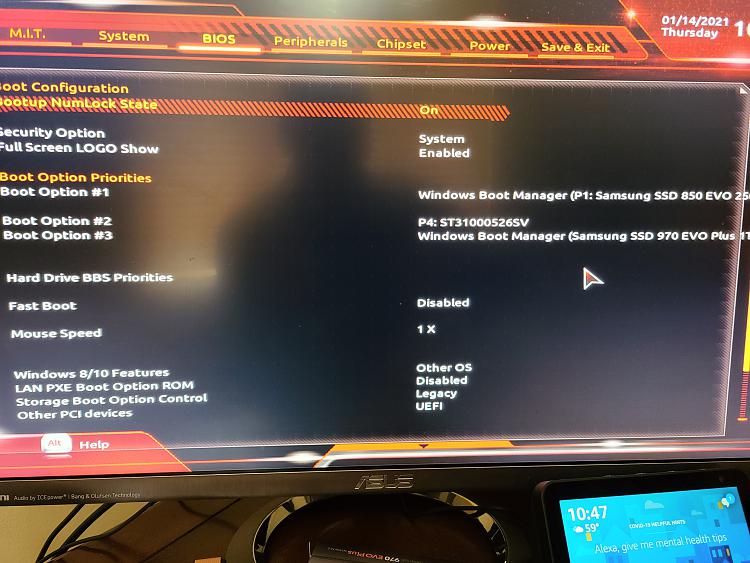

To clarify, this is the present BIOS. The Storage Boot Option Control is "Legacy", and the system boots from the Samsung SSD 850 EVO 250 GB fine.

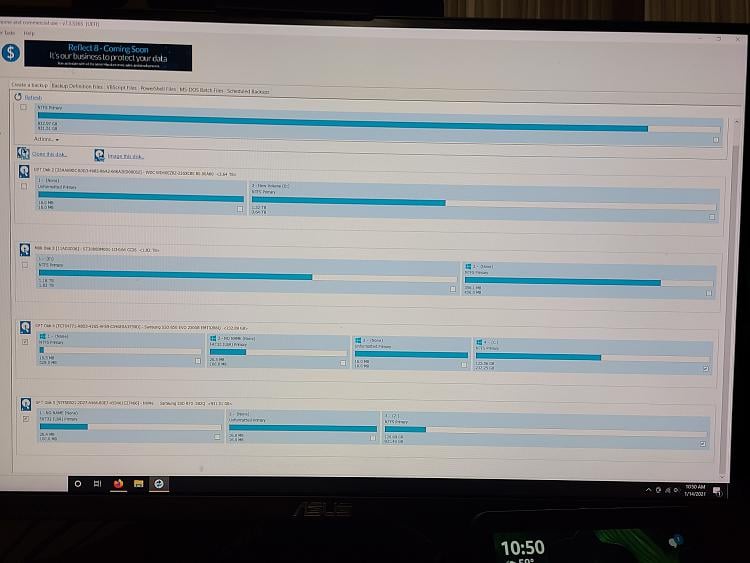

Above is what presently shows up when I load Macrium.

If I understand you correctly, use Macrium to clone the entirety of Disk 4 (SSD 850) to Disk 5 (970 EVO). Set DISK 5 as the Z:\ drive. The clone from DISK 4 to DISK 5 should wipe the prior data during the clone.

Then when I reboot, set the boot order to DISK 5 or Z:\ (970 EVO).

Last two questions:
When in the BIOS during reboot, should the STORAGE BOOT OPTION CONTROL be set to UEFI?

Do I skip or follow the last step:
Code:
reagentc /enable <- this will re-enable the Windows Recovery Environment but it will not be in a recovery partition, it will stay on the new C: drive
reagentc /info <- this will show you where the Windows Recovery Environment is

Thank you so much NavyLCDR!!!
