Windows 10: VIDEO_ENGINE_TIMEOUT_DETECTED 141 and VIDEO_TDR_FAILURE 116 while playing

I have been getting my PC to restart randomly apparently while I play some games. Sometimes it restarts at the beginning, and sometimes it restarts after minutes or even hours of gameplay.I have updated Windows, reinstalled Windows, cleaned my SSD, run DDU, and reinstalled Nvidia's drivers, and nothing has worked so far...Here are the links from the logs I've got from WinDbg the last time the error happened:https://drive.google.com/drive/folders/11qTSoPPLCmf41EicDFVabDe1_Nn4luJC?usp=sharingCan someone please help?Edit: I also checked the GPU temperature with HWMonitor moments before my

:)



Need Help Analyzing MiniDump from PC Crash

Another option is to open a support ticket with Nvidia to see if they have any suggestions.

This was the repetitive BSOD problem:

VIDEO_TDR_FAILURE (116)

These were the live events (without BSOD):

VIDEO_ENGINE_TIMEOUT_DETECTED (141)

VIDEO_SCHEDULER_INTERNAL_ERROR (119)

VIDEO_DXGKRNL_BLACK_SCREEN_LIVEDUMP (1A8)

VIDEO_MINIPORT_BLACK_SCREEN_LIVEDUMP (1B8)

VIDEO_MINIPORT_FAILED_LIVEDUMP (1B0)

VIDEO_DXGKRNL_LIVEDUMP (193)

VIDEO_TDR_TIMEOUT_DETECTED (117)

The findings with and without WDV support malfunctioning video hardware.

Swap testing may confirm malfunctioning video hardware.



BSOD Code 116 & 141 - CPU replacement needed?

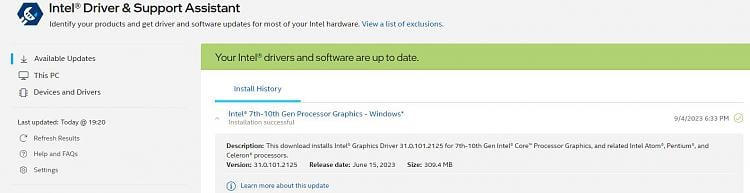

Thank you @ubuysa Great suggestion, and that's exactly what I did a couple days ago. The assistant gives a clean bill of health with all drivers up-to-date:



Livekernelevent 141 and VIDEO_TDR_FAILURE (116)

So recently i decided to upgrade my computer with a new graphics card. These are the new specs:

Motherboard: Asus ROG Strix b550i WIFI

CPU: Ryzen 5 5600x

memory: Ballistix 2x8GB 3600 MHz

Storage: Samsung 980 1TB

PSU: NZXT C650W 80+ gold

GPU: I upgraded from a 2060 6G to a 4060ti 16G

After installing the new GPU the pc started crashing quite often (When I reinstalled the old 2060 it never crashed). It would only crash while doing small tasks such as watching a video or doing light work. It did however manage to not crash during a few hours of higher load gaming. I started looking into the reliability monitor and found all crashes were either a livekernelevent 141 or 117. Using WinDBG i accessed these minidumps:

VIDEO_TDR_FAILURE (116)
Attempt to reset the display driver and recover from timeout failed.
Arguments:
Arg1: ffffcd85108be010, Optional pointer to internal TDR recovery context (TDR_RECOVERY_CONTEXT).
Arg2: fffff800a52a6730, The pointer into responsible device driver module (e.g. owner tag).
Arg3: ffffffffc000009a, Optional error code (NTSTATUS) of the last failed operation.
Arg4: 0000000000000004, Optional internal context dependent data.

Debugging Details:
------------------

Unable to load image nvlddmkm.sys, Win32 error 0n2
*** WARNING: Unable to verify timestamp for nvlddmkm.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 1843

Key : Analysis.Elapsed.mSec
Value: 2440

Key : Analysis.IO.Other.Mb
Value: 0

Key : Analysis.IO.Read.Mb
Value: 0

Key : Analysis.IO.Write.Mb
Value: 0

Key : Analysis.Init.CPU.mSec
Value: 171

Key : Analysis.Init.Elapsed.mSec
Value: 24509

Key : Analysis.Memory.CommitPeak.Mb
Value: 95

Key : Bugcheck.Code.LegacyAPI
Value: 0x116

Key : Dump.Attributes.AsUlong
Value: 1008

Key : Dump.Attributes.DiagDataWrittenToHeader
Value: 1

Key : Dump.Attributes.ErrorCode
Value: 0

Key : Dump.Attributes.KernelGeneratedTriageDump
Value: 1

Key : Dump.Attributes.LastLine
Value: Dump completed successfully.

Key : Dump.Attributes.ProgressPercentage
Value: 0

Key : Failure.Bucket
Value: 0x116_IMAGE_nvlddmkm.sys

Key : Failure.Hash
Value: {c89bfe8c-ed39-f658-ef27-f2898997fdbd}

BUGCHECK_CODE: 116

BUGCHECK_P1: ffffcd85108be010

BUGCHECK_P2: fffff800a52a6730

BUGCHECK_P3: ffffffffc000009a

BUGCHECK_P4: 4

FILE_IN_CAB: 120723-6234-01.dmp

DUMP_FILE_ATTRIBUTES: 0x1008
Kernel Generated Triage Dump

VIDEO_TDR_CONTEXT: dt dxgkrnl!_TDR_RECOVERY_CONTEXT ffffcd85108be010
Symbol dxgkrnl!_TDR_RECOVERY_CONTEXT not found.

PROCESS_OBJECT: 0000000000000004

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

STACK_TEXT:
ffffe309`402fa828 fffff800`90621a8e : 00000000`00000116 ffffcd85`108be010 fffff800`a52a6730 ffffffff`c000009a : nt!KeBugCheckEx
ffffe309`402fa830 fffff800`905d18e2 : fffff800`a52a6730 ffffcd85`0ee7f010 00000000`00000080 ffffcd85`0ee7f0d0 : dxgkrnl!TdrBugcheckOnTimeout+0xfe
ffffe309`402fa870 fffff800`905c953d : ffffcd85`0ee7b000 ffffcd85`032da100 ffffcd85`0ee7bb50 ffffcd85`0ee7bb50 : dxgkrnl!ADAPTER_RENDER::Reset+0x12a
ffffe309`402fa8a0 fffff800`906211e5 : 00000000`00000100 ffffcd85`032da100 00000000`00000000 ffffcd85`1575d630 : dxgkrnl!DXGADAPTER::Reset+0x60d
ffffe309`402fa950 fffff800`90621342 : 00000000`00000000 ffffcd85`0d01fbc0 00000000`00000000 fffff800`7f14aac0 : dxgkrnl!TdrResetFromTimeout+0x15
ffffe309`402fa980 fffff800`7e634f85 : ffffcd85`032da100 ffffcd85`0329b620 ffffe309`00000000 ffffcd85`00000000 : dxgkrnl!TdrResetFromTimeoutWorkItem+0x22
ffffe309`402fa9c0 fffff800`7e707287 : ffffcd85`032da100 00000000`00000094 ffffcd85`032da100 fffff800`7e634e30 : nt!ExpWorkerThread+0x155
ffffe309`402fabb0 fffff800`7e81b8e4 : ffff8200`83ce0180 ffffcd85`032da100 fffff800`7e707230 37008c1e`0996e13b : nt!PspSystemThreadStartup+0x57
ffffe309`402fac00 00000000`00000000 : ffffe309`402fb000 ffffe309`402f4000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x34

SYMBOL_NAME: nvlddmkm+10f6730

MODULE_NAME: nvlddmkm

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .cxr; .ecxr ; kb

FAILURE_BUCKET_ID: 0x116_IMAGE_nvlddmkm.sys

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {c89bfe8c-ed39-f658-ef27-f2898997fdbd}

Followup: MachineOwner

I have tried multiple solutions such as underclocking the GPU, resetting and reinstalling Windows 11, reinstalling the drivers using DDU, tried multiple versions of the drivers, made sure every component and cable was seated properly and RMA'd the card and gotten a entirely new one. I am starting to run out of idea's after trying so many options. Any help would be appreciated.
