Windows 10: Realtek Audio Manager not showing up

I've been banging my head at the Realtek Audio Manager for a while now so I thought id finally make a post about it.When installing the driver it installs in the program files x86 folder instead of the 64 one. It also doesn't install RtkNGUI64 its only installs the 64 upgrade exe and the install shield exe which both don't work.I've already followed the following guides to no avail:https://www.minitool.com/news/fix-realtek-hd-audio-manager-missing-win-10.htmlhttps://www.softwaretestinghelp.com/realtek-hd-audio-manager-missing/https://appuals.com/fix-realtek-audio-manager-wont-open-or-cannot-fi

:)



"Playback Device" not showing up in "Device advanced settings" in the Realtek HD Audio Manager

Hello Aditya,



Welcome to Microsoft Community.



It sounds like you're experiencing a common issue with Realtek HD Audio Manager where the front panel audio and back panel audio are treated as a single audio device instead of separate ones. Here are a few things you can try to fix the issue:

1. Update your Realtek audio drivers: Go to the Zebronics website and download the latest Realtek audio drivers for your motherboard model. Install them and see if the issue is resolved.

2. Check your audio settings in Windows: Open the Windows Sound settings by right-clicking on the speaker icon in the taskbar and selecting "Open Sound settings". Under the "Output" section, check if your headphones are listed as a separate playback device. If not, right-click in the window and select "Show disabled devices" and "Show disconnected devices". If your headphones appear, right-click on them and select "Set as Default Device".


If you already have Realtek HD Audio Manager installed on your device, the following steps may help:

1. Enable front and rear audio playback: Open the Realtek HD Audio Manager and click on the gear icon in the top right corner to access the settings. Under the "Device advanced settings" section, check the box next to "Make front and rear output devices playback two different audio streams simultaneously". This should enable separate playback for front and rear audio devices.

2. Disable front panel jack detection: In the Realtek HD Audio Manager, go to the Connector Settings tab and uncheck "Enable auto popup dialog, when device has been plugged in". This will disable the front panel jack detection and may enable separate playback for front and rear audio devices.


These steps involve the use of software from three parties, and since they are not Microsoft programs, my instructions may not be absolutely correct, and the solutions you find online may not be correct. Therefore, I suggest you consult the motherboard customer service for targeted guidance.

Hopefully, one of these solutions will help you resolve your issue.

If anything is unclear, please do not hesitate to let me know.



Best regards,

Mitchell - | Microsoft community support expert from MSFT



Headphones do not show up when Realtek is installed

OK, so this happened to me on my laptop. It wanted to use the realtek drivers no matter what. Let me show you what to do.
Step 1. Open the start menu and type 'Device Manager' in the search bar. Click on the result.

Step 2.

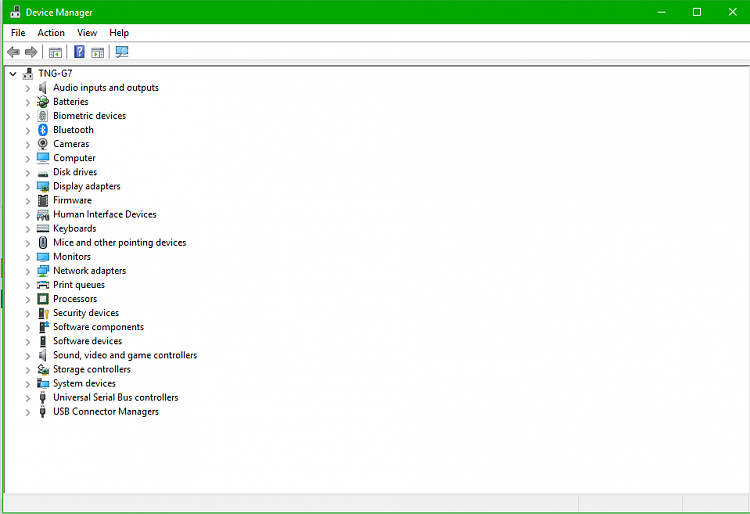

You'll see this window appear.

Step 3.

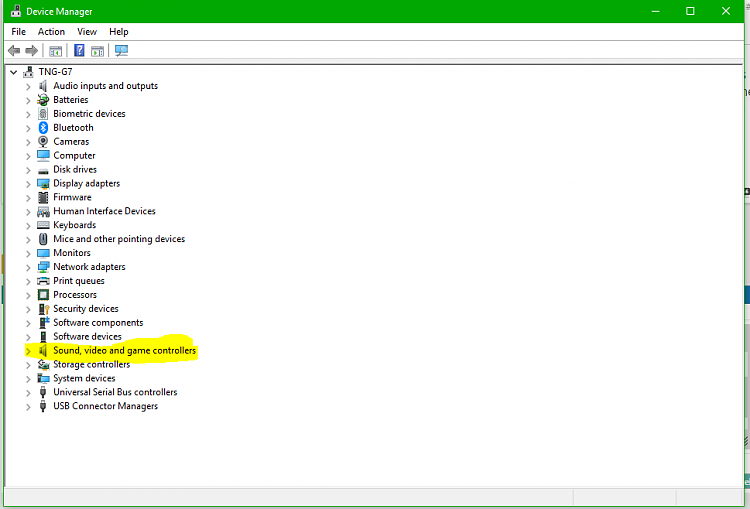

Expand the 'Sound , video and game controllers' category.

Step 4. Find 'Realtek High Definition Audio' in the list, then right click it and select Properties.

Step 5.

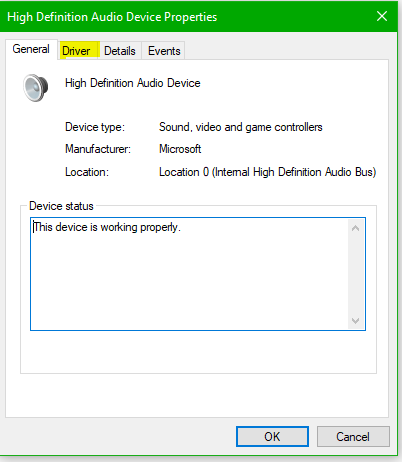

Click on the 'Driver' tab near the top of the window.

Step 6.

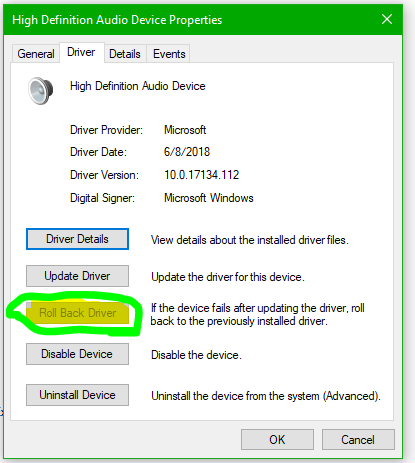

Now click on the button that says 'Roll back driver'.
If the button is dimmed, make sure your Realtek drivers are currently installed.

Step 6. If you did it correctly, the system should ask you to restart to finish. If it does then you finished the tutorial correctly!
Once restarted, Open device manager again using step 1. Expand the 'sound, video and game controllers' category again.

Step 7. If it says 'High Definition Audio Device' then you did it right. Here's a pic for example purposes:



Realtek HD audio manager not showing up anywhere on my computer.

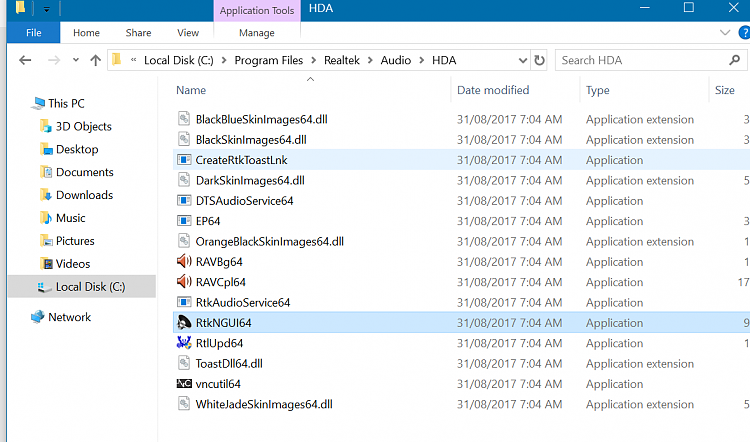

Hi Everyone, I had Realtek HD Audio Manager not showing up once, and found it under Program Files, and was able to open it from there, and then it was listed under the Control Panel,Hardware and Sound.*Smile
