Windows 10: Raid 10, windows storage space error

HI,I built a "software" raid 10 using this howto :I had a power outage, and , I can't access it anymore...It seems not having any problems, expect I don't have the "disk" mounted in windows.I have a space alert, but no way to repair it from windows:Thanks a lot.

:)



Storage Space on RAID not available

Windows 10 pro, just installed. Version 20H2. (Updates not yet started.)
Two RAID 1 arrays created in BIOS
MB: X570 AORUS Ultra, BIOS date Dec. 2019

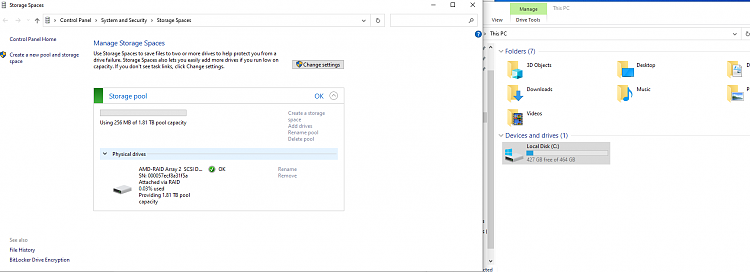

I just installed Win10 Pro on the first RAID 1 (two M.2 drives). Windows cannot see the larger RAID 1 (SATA) I'd planned to use for data. Storage Spaces can see it and let me create a storage space on it, and it looks good there.

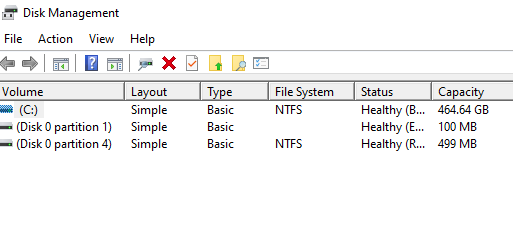

PROBLEM: Windows cannot see this array/storage space. Neither does it show in Disk Management.

Any ideas? Thanks!



Storages Spaces Configuration

I think I found the solution. It seems that there is a BUG in Storage Spaces. If you select Parity you cannot use the ReFS file system. The setup incorrectly allows you to select the ReFS file system after selecting Parity and then bombs out with the error
reported in my last post.

Through this process of starting down the Storage Spaces function two big road blocks for me were:

• The use of a RAID card. It seems that you cannot have any implementation, e.g. software or hardware, of RAID on the system if you want to use Storage Spaces on that system.
• If you want to use Parity you cannot use the ReFS file system.

Hopefully MS will fix the above issues.



Windows 10 Storage Spaces

Question;

Have a RAID 0 storage pool in Windows 10. The storage pool has 952 GB of usable space, it currently has 6.06 GB of space used. I ran a system clean-up which wrote data to securely erase empty hard drive space. Now I get a warning that my storage pool is
full. I wrote a large group of files approximately 41 GB to the space to verify there wasn't an actual limitation. After all the files copied without issue I deleted them and noticed that the pool went from no capacity to 911 GB in use, the amount that was
written and then deleted.

I have searched but not come across this issue in any internet searches. Perhaps I am not searching for the correct terminology?

Any suggestions for correcting the storage spaces error without affecting the data on the pool? The reason of concern is that the drive has a SoildWorks vault space and I would prefer not to delete it and have to recreate it.

Thanks in advance for any suggestions.
