Windows 10: NvMe SSD doesn’t show up

I’m using Lenovo ThinkPad E580. I was using SSD Twin 256 gb as my primary drive where windows is installed. Since I switched to ssd I was very happy with my laptop performance. Yesterday I transferred some photo from my camera to laptop then I disconnected card reader as usual. I opened a photo from the ssd in ms photo viewer then tried to reduce contrast. As soon as I clicked laptop hung up and after a while showed the blue screen with a long bipe then didn’t boot. Since then I m trying to repair with win media tool it doesn’t show the drive. I also changed bios configuration but all in vain.

:)



Windows doesn`t start. Authomatic repair doesn`t work.

Thanks again!!

I`m sorry I had not noticed that the text on the picture was in spanish. It says that windows has replaced some damaged clusters in "name" file and "directory". Then, at the end "an unspecified error occurred (75736e6a726e6c2e 4f6)".

I`ll do it and I`ll be updating this thread when I have the report.

- - - Updated - - -

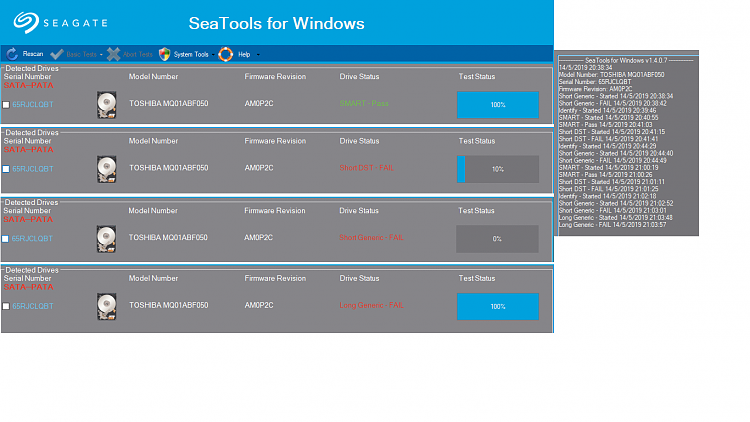

I ran SeaTools. These are the results:




Does it mean my HDD is useless?



Upgrade Windows 7 on SSD NVMe to Windows 10 on SSD NVMe

Hi Varnium,

Thanks for updating me.

Usually, you can install Windows 10 on SSD NVme directly if your computer BIOS detects it.

You can try the following steps if your computer detects the SSD NVme:

1-After creating a Windows 10 bootable USB and going through the installation process. From the Installation page "Install Now", press F10 to open the Command Prompt.

2-Type these commands and hit enter:

diskpart

list disk

select disk X (Replace X with your SSD NVme number shown in the list above)

clean

3-Restart your computer and go through the installation process.

If your computer does not detect it or the BIOS detects it, but you cannot see it during the installation process, it is best to contact your computer manufacturer's support services to provide you with accurate information about configuring BIOS.

Here are similar cases:

https://eu.alienwarearena.com/ucf/show/261122/b...

https://daily.slickdeals.net/tech/how-to-instal...

https://www.dell.com/support/kbdoc/en-ae/000132...

Note: Make sure you can find all Windows 10 compatible drivers for your computer from manufacturer's official website and your computer fully supports Windows 10 before taking further actions.

Please do not hesitate to ask if you need further assistance.

____________________________________________________________

Standard Disclaimer: There are links to non-Microsoft websites. The pages appear to be providing accurate, safe information. Watch out for ads on the sites that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research any product advertised on the sites before you decide to download and install it.



NVME SSD

Tried this, and windows still didn't see the nvme ssd. It was a brand new nvme ssd right out of the box. Nothing works.
