Windows 10: Event 162 : Volmgr - Blue screen when playing games after new upgrade to Intel 12th Gen CPU

RichardWood_582 · Apr 4, 2022

Hi, I have recently upgraded my computer to an Intel 12th Generation CPU, and since the upgrade when playing games my computer will freeze up and restart with no BSOD. The last time this has happened it blue screened and I have a memory dump file. I am unsure what to do with it, but I have attached it below. I have also listed my old and new specs. This was not happening before I upgrade my system.I also have used a fresh install of windows 11 to see if this fixed the issue, however it did not. Any help would be appreciated.Also I tried new ram, swapping from 16GB to 32GB, but with both sizes

:)

Brink · Apr 4, 2022

Why DRM Crashes Games on 12th Gen Intel Processors

Summary
Temporary workaround for games with DRM software that can’t recognize 12th Gen Intel® Core™ Processor, causing games to crash or not load.

Description
Certain third-party gaming Digital Rights Management (DRM) software may incorrectly recognize 12th Generation Intel® Core™ Processors efficient-cores (E-cores) as another system. This prevents games implementing that DRM software from running successfully. Games may crash during launch or gameplay, or unexpectedly shut down.

Resolution
A software fix has been identified by the vendor of the affected DRM software and is being rolled out. Intel is working to accelerate this process as well. See the list of known affected games.

In addition, a workaround has been found to allow for games to launch and be played. The reference implementation for a Legacy Game Compatibility Mode will allow a user to dynamically place E-cores on standby when playing games.

Workaround steps for end-users to enable Legacy Game Compatibility Mode with affected games that have not received a software fix:

Power-up system and enter system BIOS setup.

Enable switch Legacy Game Compatibility Mode to ON (one-time only) in BIOS.

Save BIOS setup changes and exit.

Boot to OS.

Toggle Keyboard Scroll Lock key ON.

Launch affected game title.

Toggle Keyboard Scroll Lock key OFF after ending game title.

Click to expand...

Source: Why Can Digital Rights Management (DRM) Crash Some Games on 12th Gen...

See also:

List of Games Affected by DRM Issue in 12th Gen Intel(R)...

Game Dev Guide for Alder Lake Performance Hybrid Architecture

Brink · Apr 4, 2022

12th Gen Intel Core Processors Defined in 60 Seconds

Intel announced its 12th Gen Intel® Core processors - previously code-named "Alder Lake" - in October during its Intel Innovation event in San Francisco. The 12th Gen Intel Core family will include 60 processors and more than 500 designs.

Take 60 seconds and learn about 12th Gen' new performance hybrid architecture that integrates two types of cores - Performance-cores and Efficient-cores - with Intel® Thread Director. Also, learn more about Intel Core i9-12900K, the world's best gaming processor.

More: 12th Gen Intel Core (Press Kit) | https://www.youtube.com/playlist?list=PLMNf0uzWVIznQRHe5STQqJ-GKCbJ0BEPx (YouTube)

Click to expand...

Source: 12th Gen Intel Core Processors Defined in 60 Seconds

Brink · Apr 4, 2022

Introducing 12th Gen Intel Core Processors

NEWS HIGHLIGHTS

Intel launches the first products in the 12th Gen Intel® Core™ family, including Intel Core i9-12900K, the world’s best gaming processor1; preorders start today with availability starting Nov. 4.

New performance hybrid architecture delivers leaps in multi-threaded performance, enabling up to 2 times faster content creation compared to prior generation2.

Six desktop processors launched today lead the industry with the transition to DDR5 memory and PCIe 5.0 connectivity to enhance gaming and creator experiences.

The 12th Gen Intel Core processor family is the first on Intel 7 process, delivering superior performance for every computing segment.

Intel unveils the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, based on Intel’s performance hybrid architecture. The new six unlocked desktop processors were introduced Oct. 27, 2021. (Credit: Intel Corporation)

Intel unveils the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, based on Intel’s performance hybrid architecture. The new six unlocked desktop processors were introduced Oct. 27, 2021. (Credit: Intel Corporation)

]Intel unveils the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, based on Intel’s performance hybrid architecture. The new six unlocked desktop processors were introduced Oct. 27, 2021. (Credit: Intel Corporation)

Intel unveiled the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, including the world’s best gaming processor, the 12th Gen Intel Core i9-12900K. They were introduced Oct. 27, 2021. (Credit: Intel Corporation)

Intel unveiled the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, including the world’s best gaming processor, the 12th Gen Intel Core i9-12900K. They were introduced Oct. 27, 2021. (Credit: Intel Corporation)

Intel unveils the 12th Gen Intel Core processor family with the launch of six new unlocked desktop processors, based on Intel’s performance hybrid architecture. The new six unlocked desktop processors were introduced Oct. 27, 2021. (Credit: Intel Corporation)

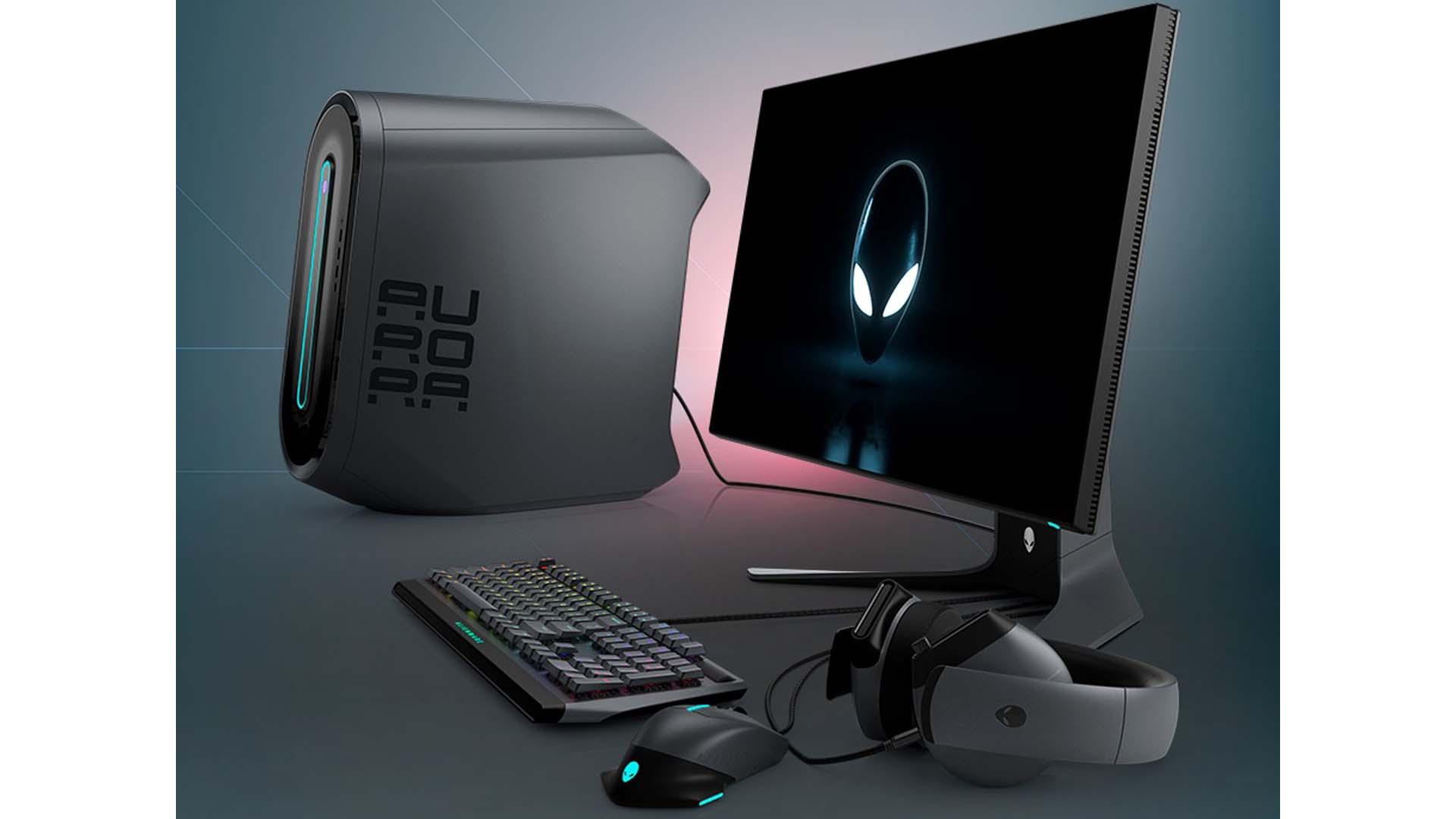

The new Alienware Aurora R13 featuring the high-performing 12th Gen Intel Core desktop processors, configurable up to an unlocked Intel Core i9-12900K. (Credit: Dell)

SAN FRANCISCO, Oct. 27, 2021 – Today at Intel Innovation, Intel unveiled the 12th Gen Intel® Core™ processor family with the launch of six new unlocked desktop processors, including the world’s best gaming processor, the 12th Gen Intel Core i9-12900K. With a max turbo boost of up to 5.2 GHz and as many as 16 cores and 24 threads, the new desktop processors reach new heights of multi-threaded performance for enthusiast gamers and professional creators.

The full 12th Gen Intel Core family will include 60 processors, set to power more than 500 designs from a broad set of partners. As detailed during Intel Architecture Day 2021, the new performance hybrid architecture, the first built on Intel 7 process, delivers scalable performance from 9 to 125 watts to enable every PC segment from ultra-thin-and-light laptops to enthusiast desktops and out to the edge.

MORE: Press Kits: Intel Innovation 2021 | 12th Gen Intel Core
Product Briefs: 12th Gen Intel Core Desktop Processors | The Intel Z690 Chipset with Unlocked 12th Gen Intel Core Desktop Processors
Webcast: Intel Innovation Keynote
News Release: Intel Innovation Spotlights New Products, Technology and Tools for Developers
Intel Innovation Topic News: Developer/oneAPI | Ubiquitous Computing | Artificial Intelligence | Cloud-to-Edge Infrastructure | Pervasive Connectivity

“The performance hybrid architecture of 12th Gen Intel Core processors is an architectural shift made possible by close co-engineering of software and hardware that will deliver new levels of leadership performance for generations,” said Gregory Bryant, Intel executive vice president and general manager of the Client Computing Group. “This begins with the arrival of our flagship Core i9-12900K – the world’s best gaming processor – and you will see even more incredible experiences as we ship the rest of the 12th Gen family and beyond.”

Game, Create and Overclock with Unlocked 12th Gen Desktop Processors

The six unlocked desktop processors launched today are the first based on Intel’s performance hybrid architecture featuring a combination of Performance-cores (P-cores), the highest performing CPU core Intel has built, and Efficient-cores (E-cores), designed for scalable multi-threaded workload performance.
enables the two new core microarchitectures to work seamlessly together by guiding the operating system (OS) to place the right thread on the right core at the right time. Intel has worked with the ecosystem on extensive testing to optimize performance and compatibility, and as part of the company’s reinforced investments in the developer community, has published white papers for developers with guidance on how independent software vendors can optimize applications for performance hybrid platforms.

“We’re at the beginning of a new era for the PC led by the introduction of Windows 11,” said Panos Panay, executive vice president and chief product officer, Microsoft. “With Windows 11 and Intel’s new Thread Director technology, users will see their PC performance reach new heights on the new 12th Gen Intel Core family of processors.”

The combination of Intel’s new performance hybrid architecture and new Intel 7 process technology delivers improved single-threaded and multi-threaded performance to enable:

The World’s Best Gaming Processor: Available with up to 16 cores and 24 threads, the new 12th Gen Intel Core processor family includes the world’s best gaming processor, the Core i9-12900K, unleashing gaming experiences across top titles. The Core i9-12900K provides amazing gen-over-gen performance increases, including up to 25% more FPS on Troy: A Total War Saga, up to 28% more FPS on Hitman 3, and up to 23% more FPS on Far Cry 63. Enhanced by Intel® Killer™ Wi-Fi 6E for up to 75% less latency while gaming when multitasking4, high-frequency P-cores paired with E-cores for offloading parallel tasks enable up to 84% more frames per second for simultaneous gaming, streaming, and recording5.

A Leap in Content Creation Performance: Advancements in multi-threaded performance, the responsive performance of the P-cores and the ability to move data at incredible speeds with DDR5 enable leadership across all types of content creation experiences, including:

Up to 36% faster photo editing performance6

Up to 32% faster video editing performance7

Up to 37% faster 3D modeling performance8

Up to 100% faster multi-frame rendering9

The Best Overclocking Experience: The new processors offer industry-leading overclocking tools for the ultimate performance customization, including the ability to overclock Efficient-cores and DDR5 memory. Enthusiasts and gamers can try these new platform overclocking features as part of the latest Intel® Extreme Tuning Utility (XTU) 7.5. Starting with the Core i9-12900K, XTU will also support one-click overclocking with Intel Speed Optimizer for unlocked 12th Gen processors. Further, Intel introduced the latest Intel® Extreme Memory Profile (XMP) 3.0 with support for DDR5, offering additional profiles, including new rewriteable custom profiles and flexible tuning for memory overclocking.

Enabling Desktop Platforms with Industry-Leading Features

12th Gen Intel Core desktop processors empower people with the performance and industry-leading features for exceptional experiences across gaming, content, and play for today and tomorrow.

Key platform advancements include:

The first processors in the industry to offer DDR5 memory for up to 4800MT/s.

The first processors in the industry to offer PCIe 5.0 (up to 16 lanes), which offers up to 2X I/O throughput over PCIe 4.0, with up to an additional four lanes of PCIe 4.0 support.

Up to 30MB Intel® Smart Cache (L3) and 14MB L2 cache for increased memory capacity with reduced latency.

Integrated high-speed wireless with Intel Killer Wi-Fi 6E, which combines industry-leading Wi-Fi 6E connectivity with powerful gaming network technology to minimize lag, latency, and packet loss10.

Discrete Thunderbolt 4 universal cable connectivity for external device expansion.

All-New Intel 600 Series Chipset

Alongside the 12th Gen Intel Core desktop processors, Intel is launching the new Intel 600 Series Chipset with advanced features for increased reliability and performance. New PCIe Gen 4.0 lanes make for 28 total lanes off the chipset, integrated USB 3.2 Gen 2x2 provides up to double the bandwidth, DMI Gen 4.0 increases the chipset to CPU throughput for fast access to peripheral devices and networking.

For the first time, Intel is bringing Intel® Volume Management Device (VMD) to PC chipsets to simplify storage control by allowing direct control and management of NVMe-based SSDs from the PCIe bus without additional RAID controllers or other hardware adaptors.

Availability

Unlocked 12th Gen Intel Core desktop processors are available now for pre-order from participating OEMs, channel partners, and retailers. Broad availability will start Nov. 4 with more than 140 customers in more than 30 countries expected to add the new processors to their lineups by the end of the year. Pricing starts at $264 to $589 for the unlocked desktop processors.

Intel expects to ship hundreds of thousands of 12th Gen Intel Core desktop “K” processors by end of year and more than 2 million by the end of March 2022. To enable the expanded offerings for desktop, mobile and commercial segments expected in early 2022, Intel is also shipping 28 of the processor SKUs in the 12th Gen Intel Core processor family to OEM partners.

Unlocked 12th Gen Intel Core Desktop Processor SKUs

[table][tr]Processor Number Processor Cores (P+E) Processor Threads Intel® Smart Cache (L3) Total L2 Cache Processor Turbo Frequency Intel® Turbo Boost Max Technology 3.0 Frequency (GHz) Processor Turbo Frequency P-core Max Turbo Frequency (GHz) Processor Turbo Frequency E-core Max Turbo Frequency (GHz) Processor Base Frequency P-core Base Frequency (GHz) Processor Base Frequency E-core Base Frequency (GHz) Unlocked Processor Graphics Total CPU PCIe Lanes Max Memory Speed Memory Channels Maximum Memory Capacity Processor Base Power (W) Maximum Turbo Power (W) [/tr] [tr][td]i9-12900K[/td] [td]16 (8P + 8E)[/td] [td]24[/td] [td]30MB[/td] [td]14MB[/td] [td]Up to 5.2[/td] [td]Up to 5.1[/td] [td]Up to 3.9[/td] [td]3.2[/td] [td]2.4[/td] [td]Yes[/td] [td]Intel® UHD Graphics 770[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]241[/td] [/tr] [tr][td]i9-12900KF[/td] [td]16 (8P + 8E)[/td] [td]24[/td] [td]30MB[/td] [td]14MB[/td] [td]Up to 5.2[/td] [td]Up to 5.1[/td] [td]Up to 3.9[/td] [td]3.2[/td] [td]2.4[/td] [td]Yes[/td] [td]n/a[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]241[/td] [/tr] [tr][td]i7-12700K[/td] [td]12 (8P + 4E)[/td] [td]20[/td] [td]25MB[/td] [td]12MB[/td] [td]Up to 5.0[/td] [td]Up to 4.9[/td] [td]Up to 3.8[/td] [td]3.6[/td] [td]2.7[/td] [td]Yes[/td] [td]Intel® UHD Graphics 770[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]190[/td] [/tr] [tr][td]i7-12700KF[/td] [td]12 (8P + 4E)[/td] [td]20[/td] [td]25MB[/td] [td]12MB[/td] [td]Up to 5.0[/td] [td]Up to 4.9[/td] [td]Up to 3.8[/td] [td]3.6[/td] [td]2.7[/td] [td]Yes[/td] [td]n/a[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]190[/td] [/tr] [tr][td]i5-12600K[/td] [td]10 (6P + 4E)[/td] [td]16[/td] [td]20MB[/td] [td]9.5MB[/td] [td]n/a[/td] [td]Up to 4.9[/td] [td]Up to 3.6[/td] [td]3.7[/td] [td]2.8[/td] [td]Yes[/td] [td]Intel® UHD Graphics 770[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]150[/td] [/tr] [tr][td]i5-12600KF[/td] [td]10 (6P + 4E)[/td] [td]16[/td] [td]20MB[/td] [td]9.5MB[/td] [td]n/a[/td] [td]Up to 4.9[/td] [td]Up to 3.6[/td] [td]3.7[/td] [td]2.8[/td] [td]Yes[/td] [td]n/a[/td] [td]20[/td] [td]DDR5 4800 MT/s DDR4 3200 MT/s[/td] [td]2[/td] [td]128GB[/td] [td]125[/td] [td]150[/td] [/tr] [/table]
Click to expand...

Source: https://www.intel.com/content/www/us...rocessors.html
