Windows 10: Configuring IIS reverse proxy to backend server using https

Hi All, I am running one backend app server as https://uat-rsa.com/default on Windows Server 2019 IIS hosted in the app tier subnet and I have one reverse proxy server on the web tier subnet on Windows Server 2019. my requirement as below: user/client browse https://uat-rsa.com/default --> reverse proxy server --> backend app serverMy reverse proxy is installed with IIS and ARR and URL Rewrite module and installed the above URL SSL cert. Kindly guide me if I need to setup a server farm pointing to backend app server or create blank site in the reverse proxy with https binding with

:)



IIS reverse proxy problem

Hello,

I'm facing an issue with IIS reverse proxy, i have 404 error: file not found.

I have also enabled proxy from ARR settings but still not working

this is the warning i see in logs :

[table][tr]ModuleName[td]IIS Web Core[/td][/tr][tr]Notification[td]MAP_REQUEST_HANDLER[/td][/tr][tr]HttpStatus[td]404[/td][/tr][tr]HttpReason[td]Not Found[/td][/tr][tr]HttpSubStatus[td]4[/td][/tr][tr]ErrorCode[td]La syntaxe du nom de fichier, de répertoire ou de volume est incorrecte. (0x8007007b)[/td][/tr][tr]ConfigExceptionInfo[/tr][/table]

Can you please help ?



easiest way make 2 iis web servers public behind 1 router

The feature you are basically asking for is called "reverse proxy". A few solutions for you:

• use webserver 1 as reverse proxy

  • example for IIS Scott Forsyth's Blog - Creating a Reverse Proxy with URL Rewrite for IIS

  • example for apache: How to pass a request from one apache server to another

  • this solution is pretty bad because you add one more single point of failure: if webserver 1 reboots due to updates, webserver 2 is offline as well

• install a reverse proxy and configure your router to NAT port 80 from your WAN port to the proxy serve.

  • just as above, you add one single point of failure

  • example with nginx: Nginx reverse proxy multiple backends

  • example with a mikrotik OS : https://wiki.mikrotik.com/wiki/Multiple_Web_Servers (i am not affiliated with mikrotik) - as the routing device is also the proxy, you have one single point of failure less

  • install a firmware to your router that supports reverse proxy


Sure there are many more proxy servers you could use, but i recommend in first place nginx, you will find lots of tutorials and it is open-source

• ask your ISP about a second static IP address.

  • In my office, we have 4 static IP's, our ISP (cable) provided a propreitary Cisco device that has got 4 GBit Ethernets, each one providing one IP. It is about 10$ more per month than my private contract is. This way you have even one single point of failure less: your router hehe

• serve both web applications on the same server or built a cluster

  • why not? this way you could increase availibility of your proxy and webserver by building a cluster of your 2 hardware servers, example with proxmox Proxmox VE 4.x Cluster - Proxmox VE (i am not affiliated with proxmox, it is open source anyway)

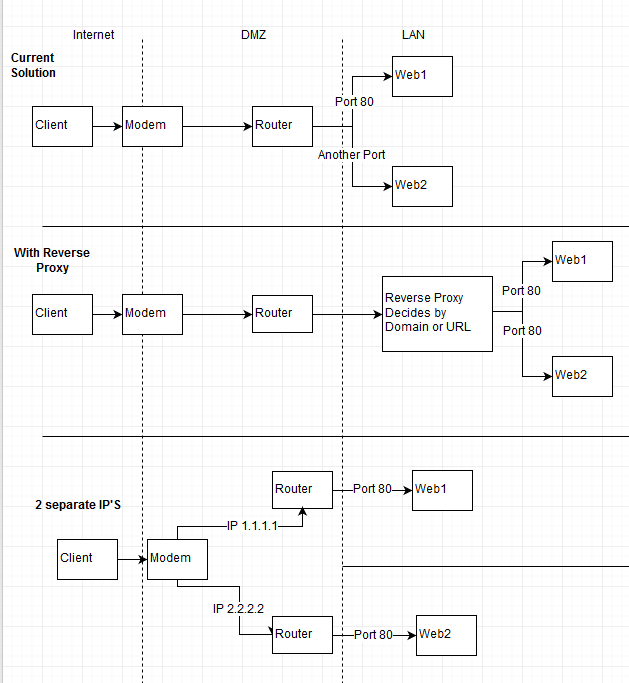

As we all love drawings, here some drawing



Proxy Server settings in WM6

Hi,

Under Connections -> Configure Proxy Server -> Proxy Definition -> Advanced, there is a list of types of proxies that can be configured - HTTP, WAP, Secure WAP and Socks.

I need to use the HTTP proxy and it works fine but everytime I am done using the connection, I need to go back and reconfigure the proxy server settings !! Why does the server settings disappear ?? and where can I configure it such that it doest not vanish
again !?

thanks,

SG
